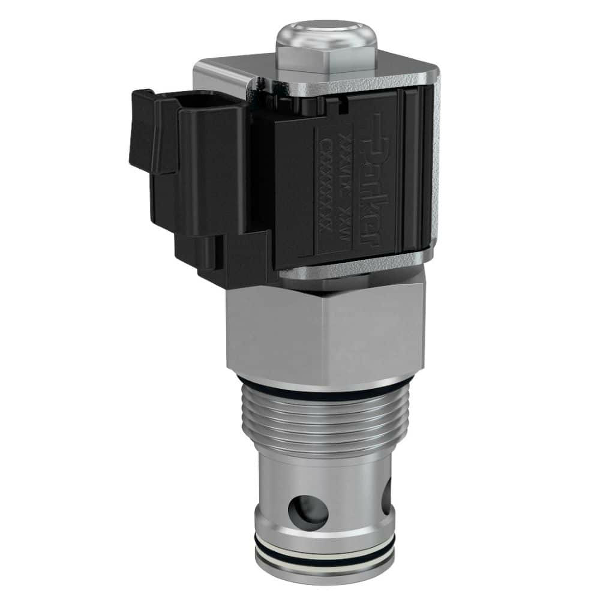

2 Way Poppet Type Bi-Directional Solenoid Valve | #GS068100N
Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Pressures up to 350 bar (5000 psi), flows up to 285 lpm (75 gpm).
View Series Page
Share / Email
Print
Technical Specifications
Flow Rate: 285 L/MIN
Maximum Inlet Pressure Rating: 350 BAR
Configuration: Normally Closed
Actuation Type: Electrical
Seal Material: Nitrile
Wire Mesh Screen Included: No
Flow Rate: 75 Gal/min, 285 L/min
Maximum Inlet Pressure Rating: 5000 psi, 350 bar
Configuration: Normally Closed
Actuation Type: Electrical
Seal Material: Nitrile
Wire Mesh Screen Included: No
Maximum Flow Rate: 75 Gal/min, 285 L/min
Mounting Type: Screw in cartridge valve
Application: Mobile Hydraulics, Industrial Hydraulics
Flow Direction: Bi-directional
Operation Type: Solenoid operated
Maximum Operating Pressure: 5000 psi, 350 bar
Leak Rate: 9 drops/min
Cavity Size: C16-2
Function: 2-way
Override Functionality: N/A
For Fluid Type: Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity: 45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating: ISO 4406 18/16/13, SAE Class 4
Valve Material: All parts steel. All operating parts hardened steel
Seat Material: Steel
Installation Torque: 80 lb-ft, 108 Nm
Coil Nut Tightening Torque: 3 lb-ft, 4.1 Nm
Operating Temperature: -30 to +250 °F, -34 to +121 °C
Maximum Operating Temperature: +250 °F, +121 °C
Minimum Operating Temperature: -30 °F, -34 °C
Coil Type: 1/2″ Super Coil High Watt (CCP)
Input Voltage: 85% of rated voltage at 72°F (20°C) min
Response Time: 50 ms
Weight: 0.88 lb, 0.4 kg
ANSI Flange Class: N/A
Body Material: N/A
Bore Diameter: N/A
Connection Size: N/A
Flange Face Type: N/A
Specifications Met: N/A
