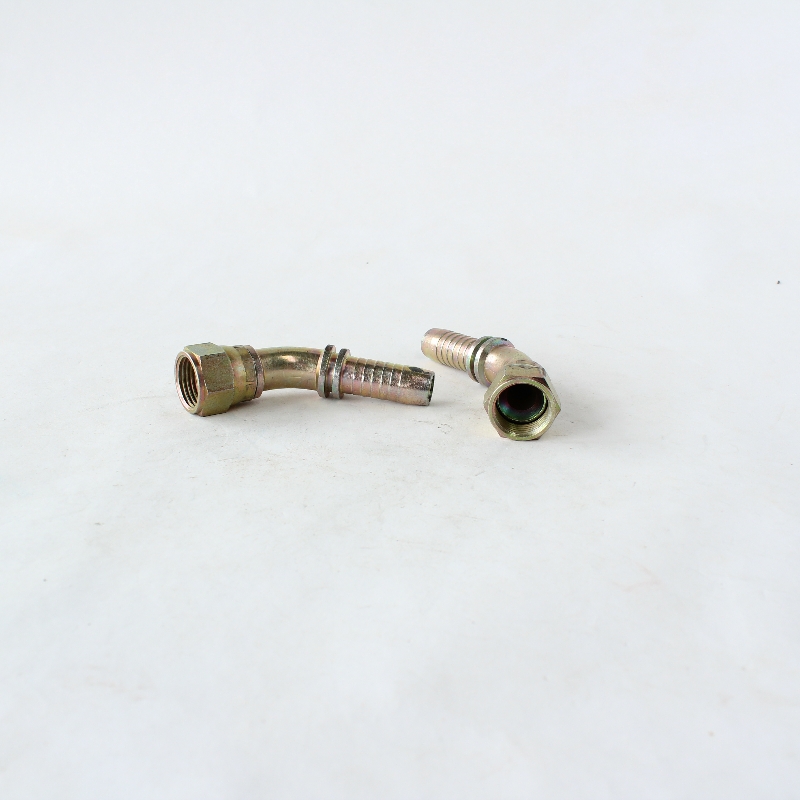

JICF450604 , Hydraulic Elbow 45 Deg. Fitting JIC FEMALE 3/8 Inch – 1/4 Inch Hose

Name: JICF450604 , Hydraulic Elbow 45 Deg. Fitting JIC FEMALE 3/8 Inch - 1/4 Inch Hose
SKU: JICF450604
Price: 670.00 KES
Availability: InStock

KES 670.00 incl. VAT

Normally Stocked,

Only 2 left in stock (can be backordered)

Manufacturer Ref.: FJ43B-04-06 SKU: JICF450604 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 1/4 Inch, JICF450604

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

JIC 37° FEMALE SWIVEL – 45° ELBOW

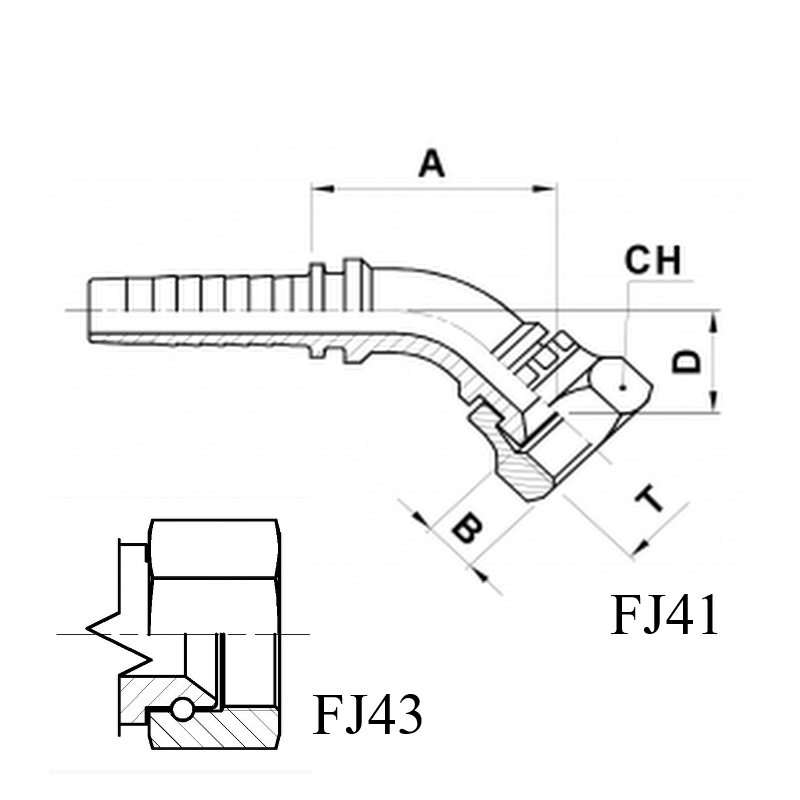

Dimensions :

Hose Bore DN 6 – 1/4 Inch – Size 4
T : 9/16 Inch – 18
A : 36 mm
B : .9.5 mm
D : .13 mm
CH : 17.46 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Hose Size	1/4 Inch
Fitting Standard	JIC
Fitting Size	3/8 IncH
Male or Female	Female
Shape of the fitting	45 deg
Type of Fitting	Elbow
