Description

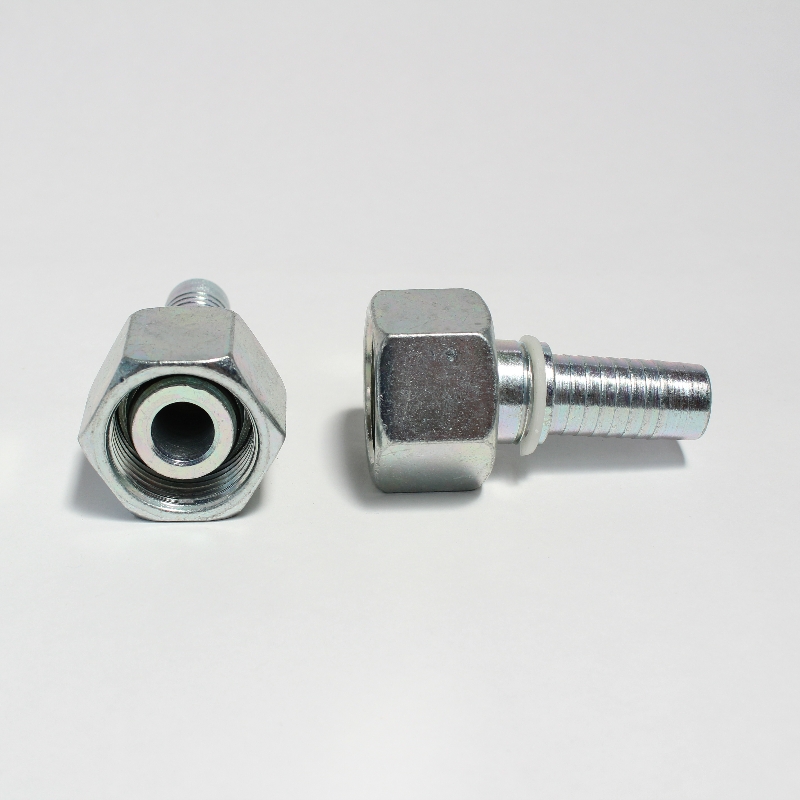

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
METRIC LIGHT FEMALE SWIVEL (24° CONE SEAT)

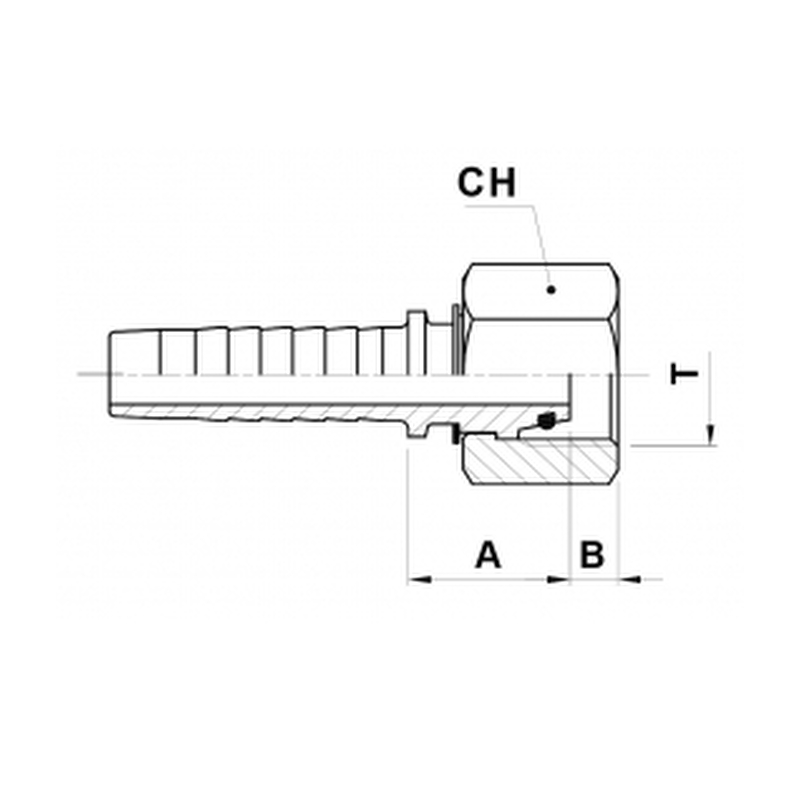

Dimensions :
Hose Bore DN 12 – 1/2 Inch – Size 8
T : M26 x 1.5
Pipe Size : L18
A : 30 mm
B : 2 mm
CH : 32 mm
