Description
MAIN DATA :

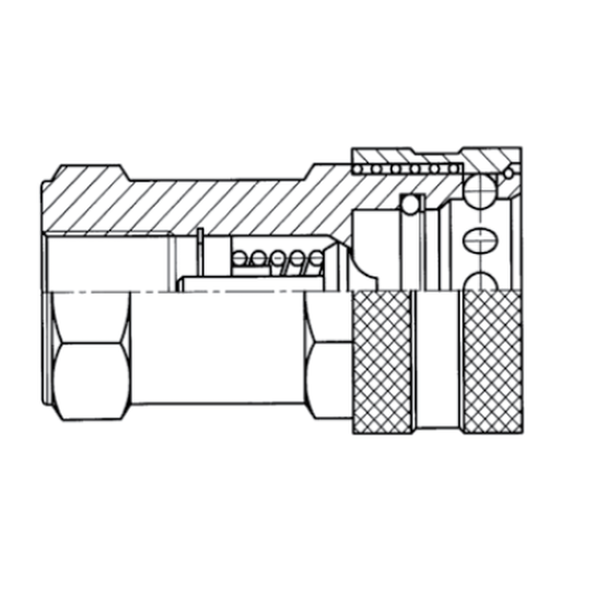

Series N designs, also known as agricultural interchange,
probably the most popular coupling design worldwide on agricultural
applications. The size 1/2” is identical to series A ISO7241-A interchangeable.
Type : Female
Max working pressure 315 Bar

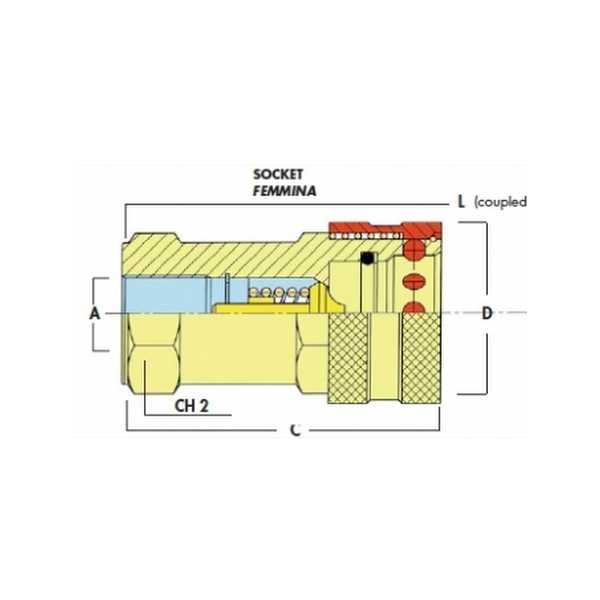

Dimensions
A diameter : 3/8 Bsp
C in mm : 60.5
D in mm : 31
CH2 in mm : 24
