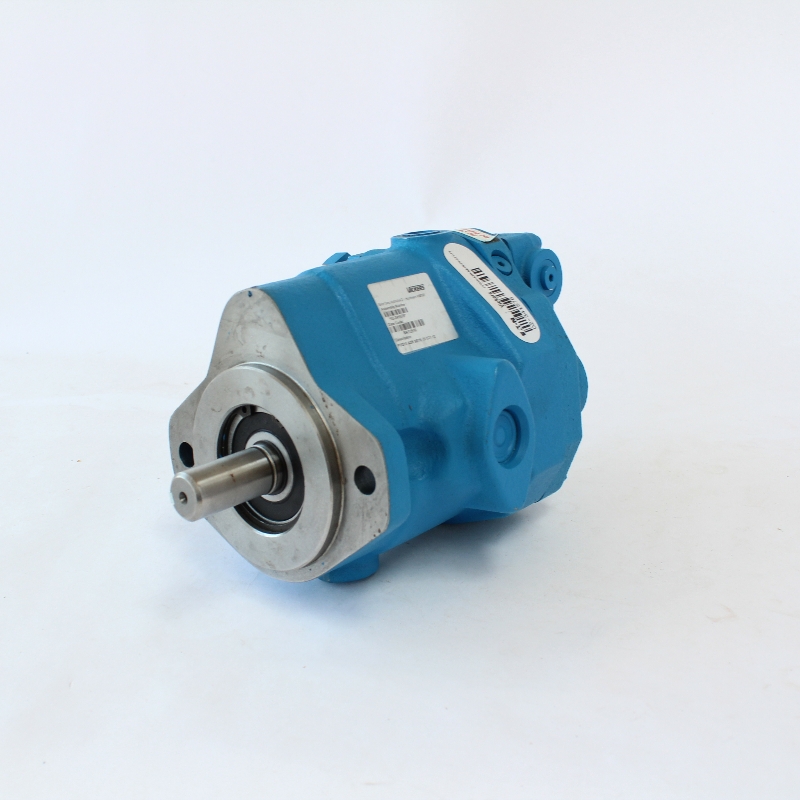

SERIES : PVQ – INLINE PISTON PUMP, VARIABLE VOLUME, QUIET SERIES
DISPLACEMENT : 10.5 CC/REV (1.29 CIR), 207 BAR (3000 PSI)
MOUNTING FLANGE : A2 SAE A 2 BOLT
INPUT SHAFT ROTATION R – RIGHT-HAND ROTATION (CW)
THRU-DRIVE WITHOUT COUPLING
PORTS – TYPE AND LOCATION -SE – STANDARD – INCH O-RING BOSS, 1.625 Inch INLET AND OUTLET, END PORT
SHAFTS – INPUT 1 – STRAIGHT KEYED, SAE A MODIFIED 0.75 X 1.75 LG
SEALS : BUNA N, STANDARD
PUMP DESIGN NUMBER : 20
CONTROL TYPE C21 – Pressure Compenstor 210 BAR
CONTROL OPTION : WITHOUT ADJUSTABLE MAXIMUM DISPLACEMENT STOP (STANDARD)
