Description
TWO TEXTILE BRAID HOSE
MEETS OR EXCEEDS EN 855 R7 AND SAE 100 R7

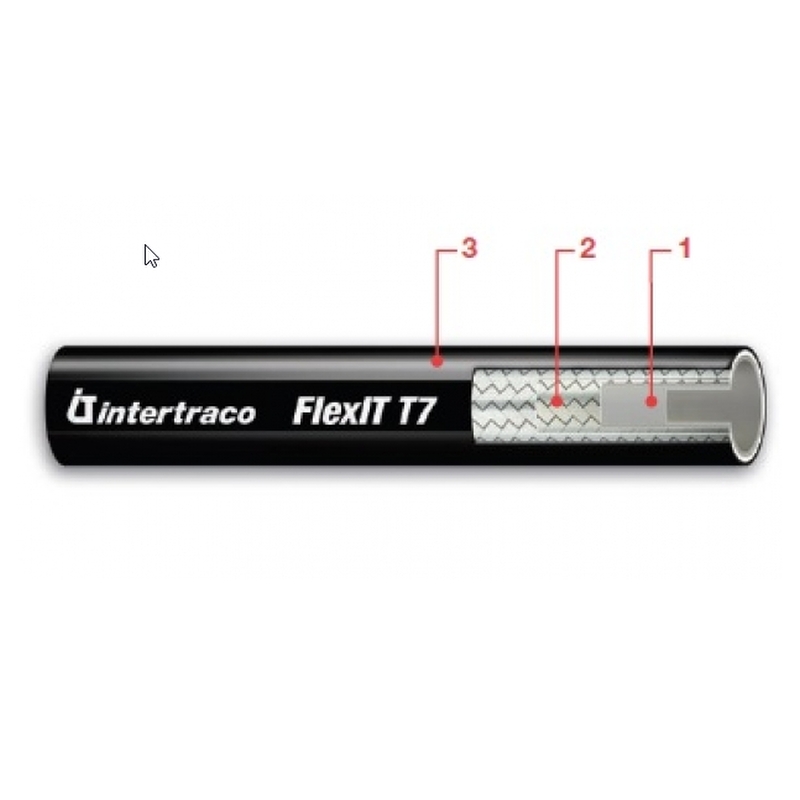

A. Construction
1 – Thermoplastic polyester tube
2 – Two polyester wire braids
3 – Black polyurethane cover
B. Application
Hydraulic oils, both mineral and biological Polyglycol base oils, water-oil emulsions and water
C. Temperature range
Hydraulic oils: -40°C to +100°C (-40°F to +212°F)Polyglycol base oils, water-oil emulsions, water and air: up to +65°C (+149°F)
Manufacturer Reference T7-06
Hose Diameter : DN 10, Inch 3/8, Size 06
Outside Diameter 16 mm
Working Pressure Bar/PSI : 175/2500
Burst Pressure Bar/PSI : 700/10000
Bend Radius mm : 55
Weight per meter Kgm: 0,16
