Description
TWO TEXTILE BRAID HOSE
MEETS OR EXCEEDS EN 855 R7 AND SAE 100 R7

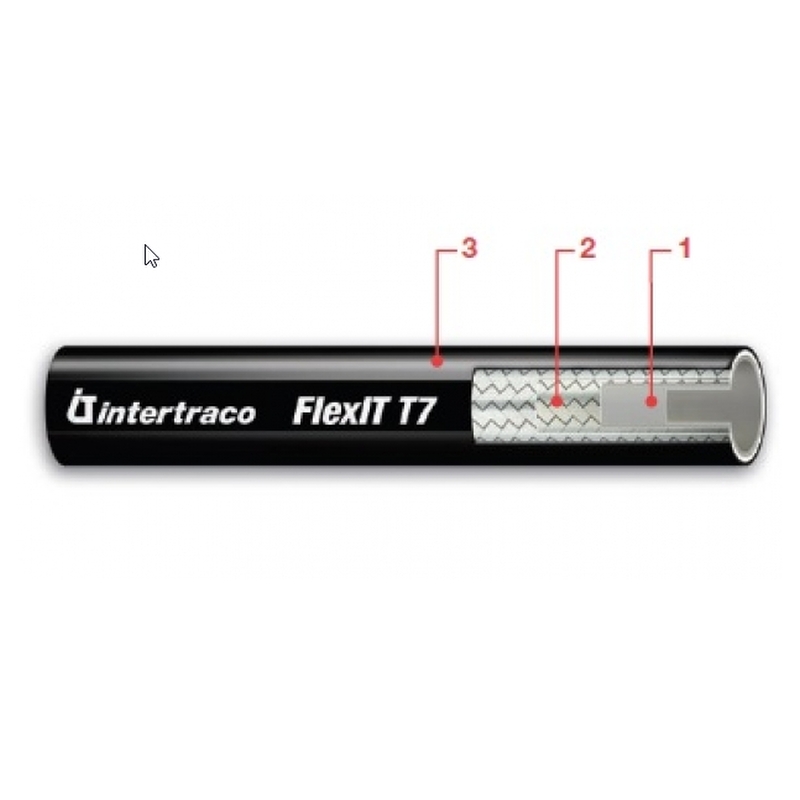

A. Construction
1 – Thermoplastic polyester tube
2 – Two polyester wire braids
3 – Black polyurethane cover
B. Application
Hydraulic oils, both mineral and biological Polyglycol base oils, water-oil emulsions and water
C. Temperature range
Hydraulic oils: -40°C to +100°C (-40°F to +212°F)Polyglycol base oils, water-oil emulsions, water and air: up to +65°C (+149°F)
Manufacturer Reference T7-08
Hose Diameter : DN 12, Inch 1/2, Size 08
Outside Diameter 20,3 mm
Working Pressure Bar/PSI : 140/2000
Burst Pressure Bar/PSI : 560/8000
Bend Radius mm : 75
Weight per meter Kgm: 0,22
