Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

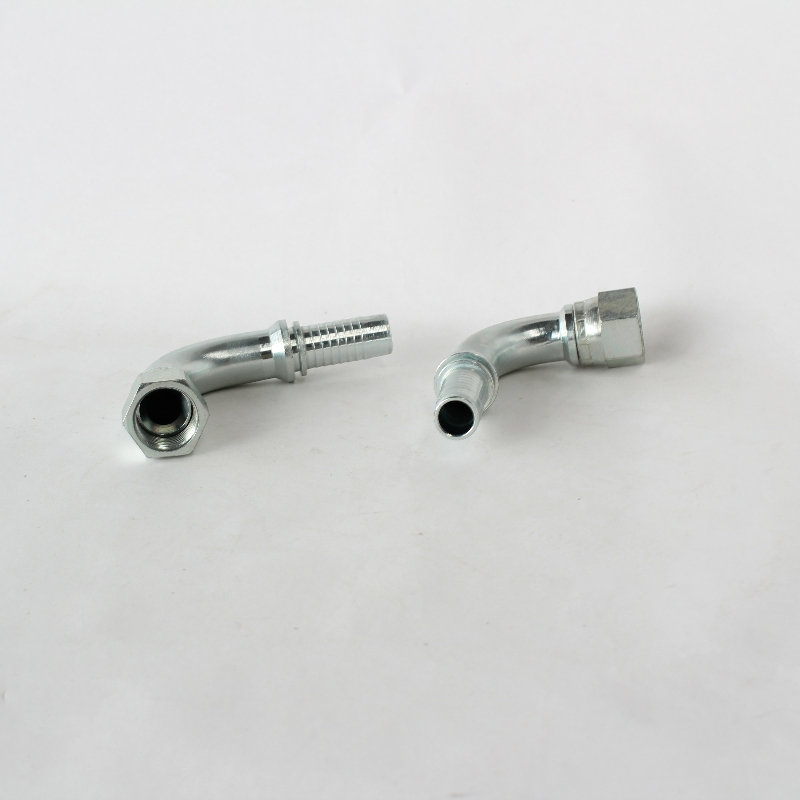

JIC 37° FEMALE SWIVEL – 90° ELBOW

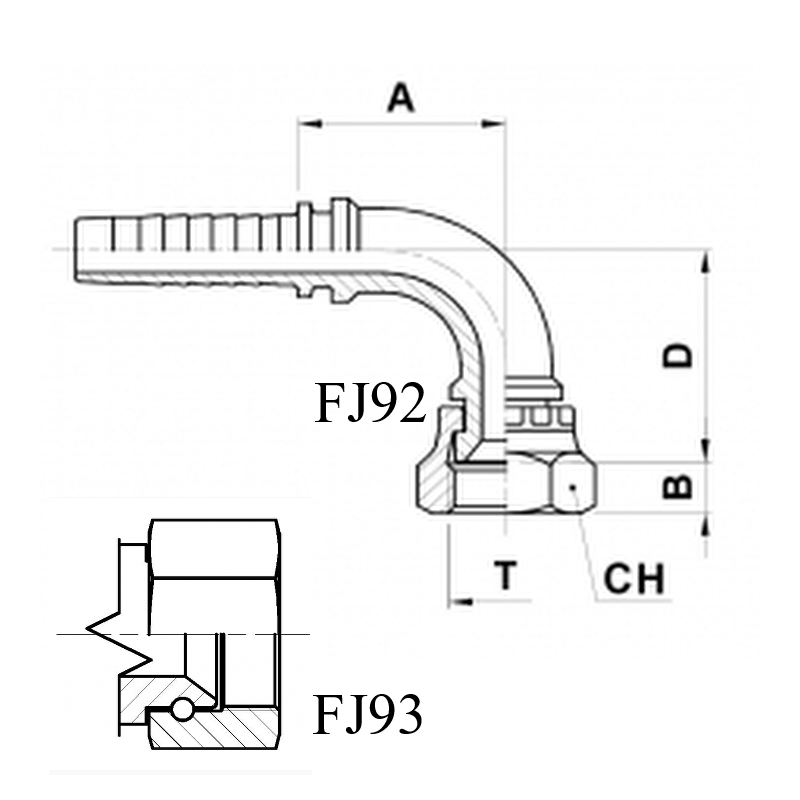

Dimensions :
Hose Bore DN 16 – 5/8 Inch – Size 10
T : 7/8 Inch – 14
A : 47.5 mm
B : 12.7 mm
D : 49 mm
CH : 27 mm
