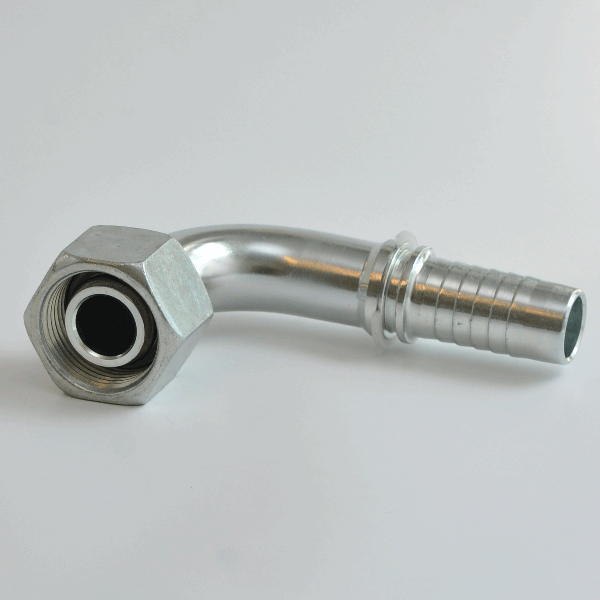

METF9010L05 , Hydraulic Elbow 90 Deg METRIC FEMALE FITTING – 5/16 Inch hose

Name: METF9010L05 , Hydraulic Elbow 90 Deg METRIC FEMALE FITTING - 5/16 Inch hose
SKU: METF9010L05
Price: 620.00 KES
Availability: InStock

KES 620.00 incl. VAT

Normally Stocked,

Only 1 left in stock (can be backordered)

Manufacturer Ref.: FL93B-05-16 SKU: METF9010L05 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 10L, 5/16 Inch, METF9010L05

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)

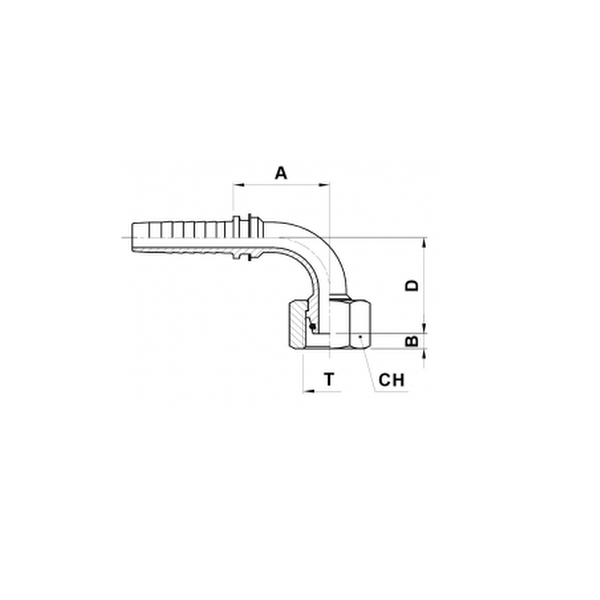

Dimensions :

Hose Bore DN 8 – 5/16 Inch – Size 5L
Pipe : L10
T : M16 x 1.5
A : 30.5 mm
B : 1.5 mm
D : 33 mm
CH : 19 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Pipe Size	10L
Hose Size	5/16 Inch
Fitting Standard	METRIC
Fitting Size	M16 x 1.5
Male or Female	Female
Shape of the fitting	90 deg
Type of Fitting	Elbow
