Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

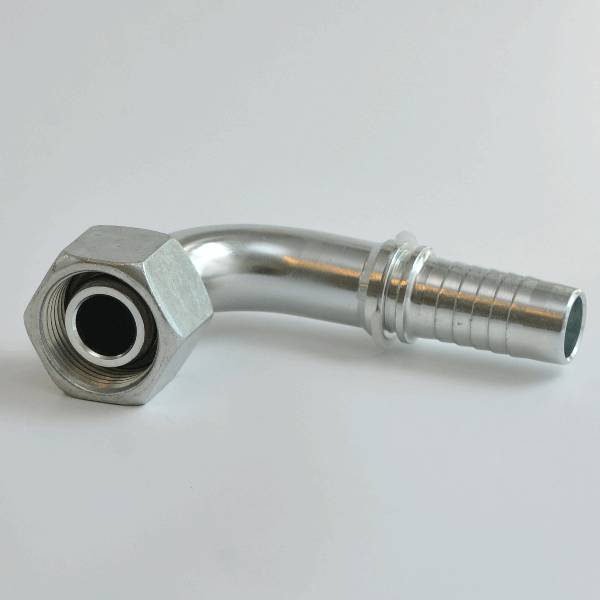

METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)

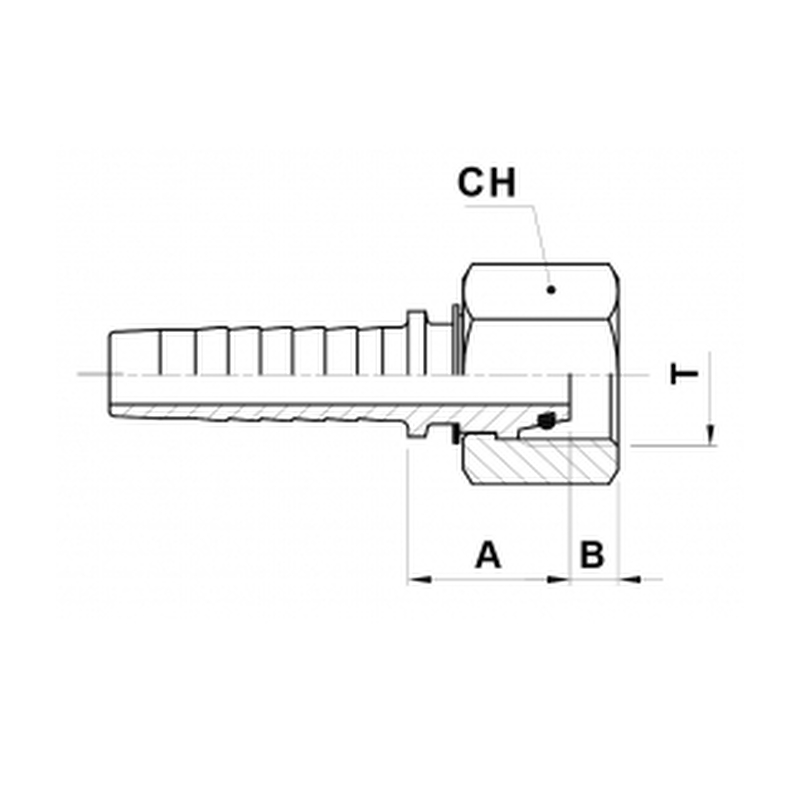

Dimensions :
Hose Bore DN 10 – 3/8 Inch – Size 6
Pipe : L10
T : M16 x 1.5
A : 34 mm
B : 3.5 mm
D : 39.5 mm
CH : 19 mm
