Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

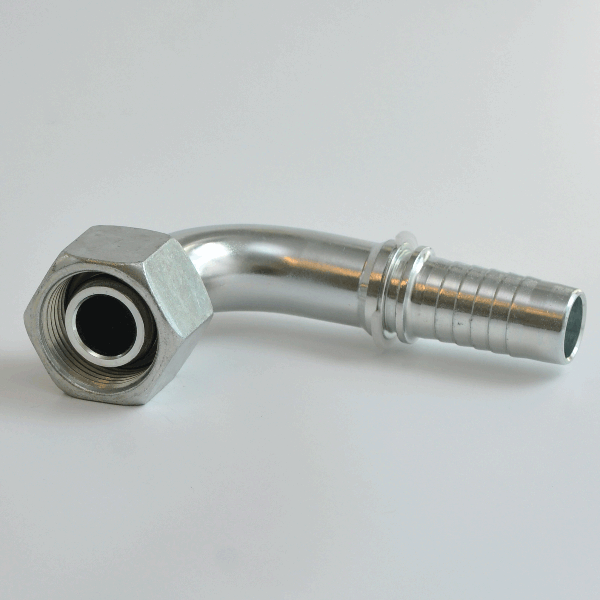

METRIC HEAVY FEMALE SWIVEL – 90° ELBOW (24° CONE SEAT)

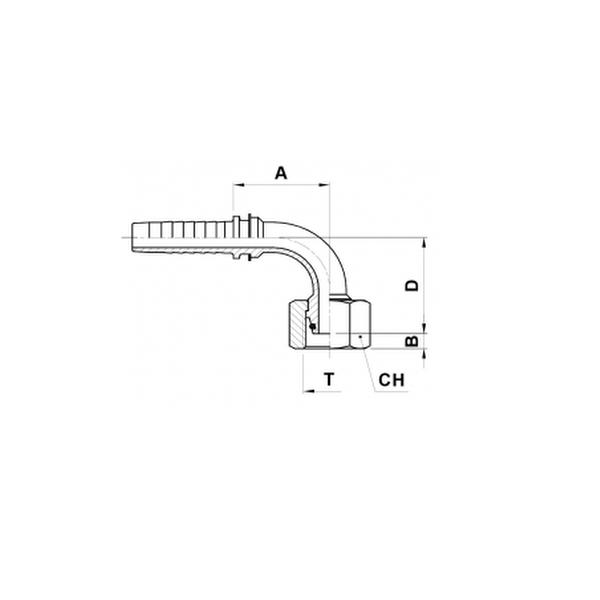

Dimensions :
Hose Bore DN 6 – 1/4 Inch – Size 4
Pipe : S8
T : M16 x 1.5
A : 28.2 mm
B : 2.5 mm
D : 32.5 mm
CH : 19 mm
