Description

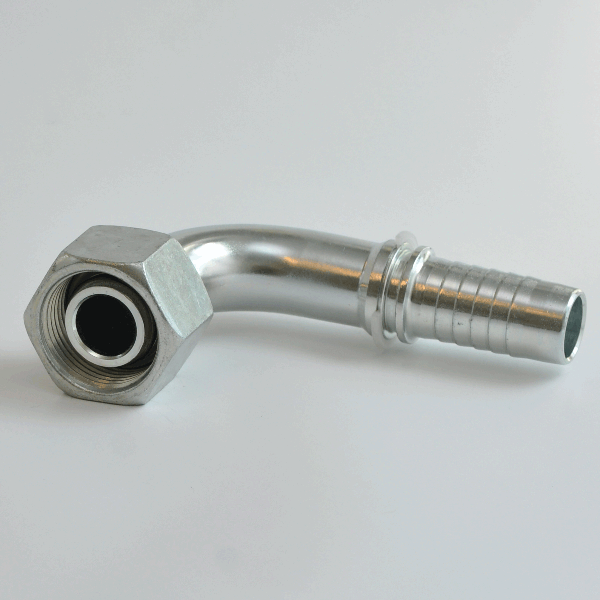

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)

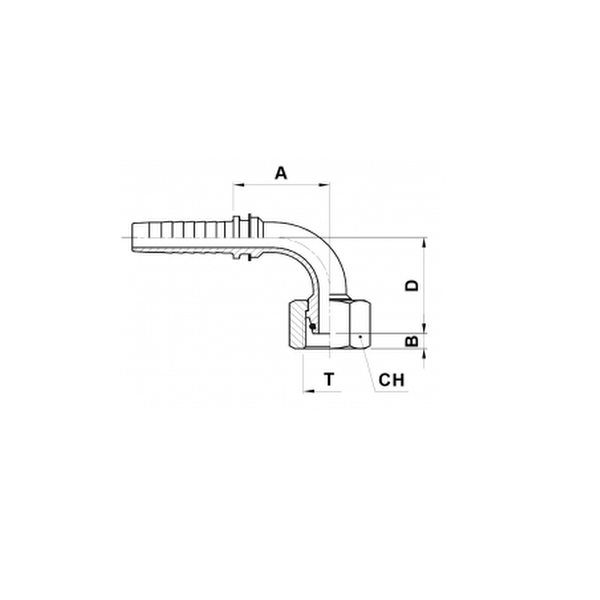

Dimensions :
Hose Bore DN 12 – 1/2 Inch – Size 8
Pipe : L15
T : M22 x 1.5
A : 38.2 mm
B : 2.5 mm
D : 40 mm
CH : 27 mm
