Description
Description :
Maximum operating pressure 420 bar
Maximum flow 150 l/min

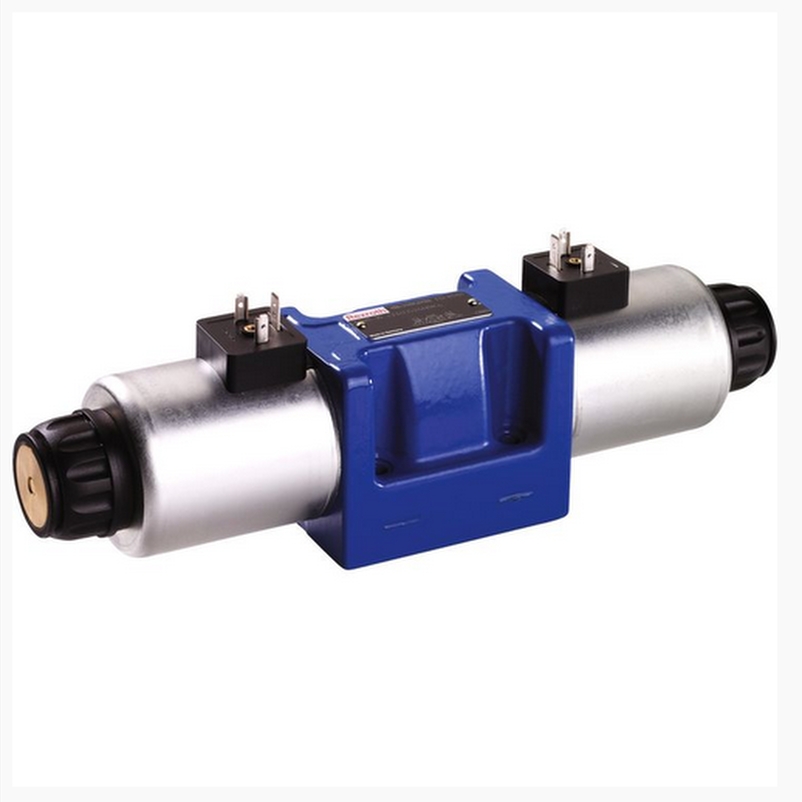

Directional valve
Standard version (Maximum operating pressure 350 bar)
5-chamber version
4 main ports
Size 10
Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)
Spool return : With spring return
G110 : Direct voltage 110 V
N9 : With concealed manual override (standard)
Corrosion resistance (outside) : None (valve housing primed)
Electrical connection K4 : Without mating connector, with connector according to DIN EN 175301-803
Spool position monitoring QMAG : – Inductive position switch type QM Monitored spool position a
Switching time increase : Without switching time increase
Throttle insert: Without throttle insert
